Truss Reaction

Problem 005-mj | Method of Joints

Problem 005-mj
Compute the force in all members of the truss shown in Fig. T-08.


Five-meter high truss



  • Read more about Problem 005-mj | Method of Joints
  • Log in or register to post comments

Problem 005-ms | Method of Sections

Problem 005-ms
The structure shown in Figure T-07 is pinned to the floor at A and H. Determine the magnitude of all the support forces acting on the structure and find the force in member BF.


Frame with members under axial force only



  • Read more about Problem 005-ms | Method of Sections
  • 3 comments
  • Log in or register to post comments

Problem 004-mj | Method of Joints

Problem 004-mj
The truss pinned to the floor at D, and supported by a roller at point A is loaded as shown in Fig. T-06. Determine the force in member CG.


Truss with rectangular arrangement of members at the center



  • Read more about Problem 004-mj | Method of Joints
  • 2 comments
  • Log in or register to post comments

Problem 004-ms | Method of Sections

Problem 004-ms

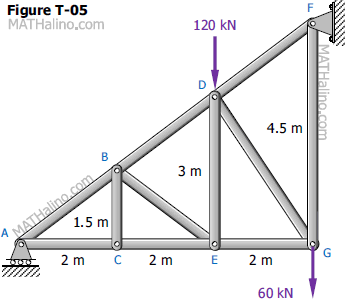

For the truss shown in Fig. T-05, find the internal fore in member BE.


Right Triangular Truss



  • Read more about Problem 004-ms | Method of Sections
  • 3 comments
  • Log in or register to post comments

Problem 003-mj | Method of Joints

Problem 003-mj
Find the force in each member of the truss shown in Fig. T-04.





  • Read more about Problem 003-mj | Method of Joints
  • Log in or register to post comments

Problem 002-ms | Method of Sections

Problem 002-ms
The roof truss shown in Fig. T-03 is pinned at point A, and supported by a roller at point H. Determine the force in member DG.


Roof truss by method of sections



  • Read more about Problem 002-ms | Method of Sections
  • 8 comments
  • Log in or register to post comments

Problem 002-mj | Method of Joints

Problem 002-mj
The structure in Fig. T-02 is a truss which is pinned to the floor at point A, and supported by a roller at point D. Determine the force to all members of the truss.


Warren truss by method of joints



  • Read more about Problem 002-mj | Method of Joints
  • Log in or register to post comments

Problem 403 | Method of Joints

Problem 403
Determine the force in each bar of the truss shown in Fig. P-403.


Tower-like truss



  • Read more about Problem 403 | Method of Joints
  • Log in or register to post comments

Problem 356 | Equilibrium of Non-Concurrent Force System

Problem 356
The cantilever truss shown in Fig. P-356 is supported by a hinge at A and a strut BC. Determine the reactions at A and B.


Cantilever truss with equal loads at top joints



  • Read more about Problem 356 | Equilibrium of Non-Concurrent Force System
  • Log in or register to post comments

Problem 355 | Equilibrium of Non-Concurrent Force System

Problem 355
Determine the reactions at A and B on the Fink truss shown in Fig. P-355. Members CD and FG are respectively perpendicular to AE and BE at their midpoints.


Fink truss with support at -30 degree slope



  • Read more about Problem 355 | Equilibrium of Non-Concurrent Force System
  • Log in or register to post comments
