726 Area enclosed by parabola and straigh line | Centroid of Composite Area

Problem 726
Locate the centroid of the shaded area enclosed by the curve y2 = ax and the straight line shown in Fig. P-726. Hint: Observe that the curve y2 = ax relative to the y-axis is of the form y = kx2 with respect to the x-axis.


724 Rectangle, semicircle, quarter-circle, and triangle | Centroid of Composite Area

Problem 724
Find the coordinates of the centroid of the shaded area shown in Fig. P-724.


723 Rectangle, quarter circle and triangle | Centroid of Composite Area

Problem 723
Locate the centroid of the shaded area in Fig. P-723.


722 Semicircle and quarter circle | Centroid of composite area

Problem 722
Locate the centroid of the shaded area in Fig. P-722 created by cutting a semicircle of diameter r from a quarter circle of radius r.


721 Increasing the width of flange to lower the centroid of inverted T-beam

Problem 721
Refer again to Fig. P-714. To what value should the 6-in. width of
the flange be changed so that the centroid of the area is 2.5 in. above the base?


Inverted T-section for centroid problem



720 Two triangles | Centroid of Composite Area

Problem 720
The centroid of the sahded area in Fig. P-720 is required to lie on the y-axis. Determine the distance b that will fulfill this requirement.


Centroid involving a triangle of unknown base



719 Closed Straight Lines | Centroid of Composite Lines

Problem 719
Determine the centroid of the lines that form the boundary of the shaded area in Fig. P-718.


Trapezoidal area with isosceles triangle subtracted from the bottom



718 Square and Triangles | Centroid of Composite Area

Problem 718
Locate the centroid of the shaded area shown in Fig. P-718.


Trapezoidal area with isosceles triangle subtracted from the bottom

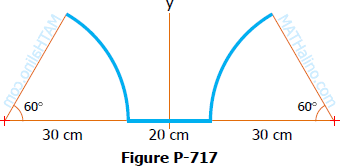

717 Symmetrical Arcs and a Line | Centroid of Composite Line

Problem 717
Locate the centroid of the bent wire shown in Fig. P-717. The wire is homogeneous and of uniform cross-section.


A line and two arcs in vertical symmety



716 Semicircular Arc and Lines | Centroid of Composite Figure

Problem 716
A slender homogeneous wire of uniform cross section is bent into the shape shown in Fig. P-716. Determine the coordinates of the centroid.


Vertical line, semicircular arc, and 30 deg line
